PICO | Data Loggers

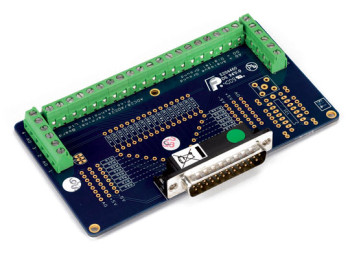

ADC-20 and ADC-24

The PicoLog ADC-20 and ADC-24 are high-resolution USB data loggers offering 20-bit and 24-bit resolution, respectively. Designed for multichannel voltage measurements, they provide true differential inputs, galvanic isolation, and programmable input ranges, making them ideal for applications requiring precise and accurate data acquisition..

  • Detail
  • Special Features
  • Specification

The PicoLog ADC-20 and ADC-24 are precision data acquisition systems designed to provide high-resolution voltage measurements. The ADC-20 offers 20-bit resolution, while the ADC-24 provides 24-bit resolution, allowing for the detection of very small voltage changes.

Both models feature true differential inputs that can be configured as single-ended inputs, offering flexibility in sensor integration. With 7 programmable input ranges, these loggers can accommodate a wide variety of sensors and signal types.

The ADC-24 model includes 4 digital I/O channels, which can be used for controlling external devices or triggering alarms, enhancing its applicability in automation systems.

Powered via USB, these data loggers are easy to deploy without the need for additional power sources. The included PicoLog 6 software provides a user-friendly interface for setting up the logger, recording data, and analyzing results.

For applications requiring more channels, multiple PicoLog devices can be connected to a single PC, allowing for scalable data acquisition solutions.

  • High Resolution: Offers 20-bit (ADC-20) and 24-bit (ADC-24) resolution for detecting small signal changes.

  • Multichannel Inputs: Supports up to 8 differential or 16 single-ended inputs (ADC-24) and 4 differential or 8 single-ended inputs (ADC-20).

  • Programmable Input Ranges: Provides 7 input ranges from ±39 mV to ±2500 mV, accommodating various sensor types.

  • Fast Conversion Time: Achieves conversion times as low as 60 ms per channel, enabling rapid data sampling.

  • Digital I/O Channels: The ADC-24 includes 4 configurable digital input/output channels for control applications.

  • USB Powered: Powered directly via USB, eliminating the need for external power supplies.

  • Software Support: Compatible with PicoLog 6 software for data collection, analysis, and visualization.

  • Cross-Platform Compatibility: Supports Windows, macOS, Linux, and Raspberry Pi platforms.

Feature ADC-20 ADC-24
Resolution 20 bits 24 bits
Input Channels 4 differential / 8 single-ended 8 differential / 16 single-ended
Input Ranges ±2500 mV, ±1250 mV ±2500 mV, ±1250 mV, ±625 mV, ±312 mV, ±156 mV, ±78 mV, ±39 mV
Conversion Time 60 ms to 660 ms per channel 60 ms to 660 ms per channel
Digital I/O Channels None 4 configurable channels
USB Powered Yes Yes
Software PicoLog 6 PicoLog 6
Platform Support Windows, macOS, Linux, Raspberry Pi Windows, macOS, Linux, Raspberry Pi
